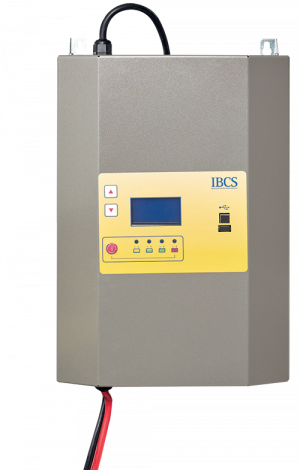

• Green Series 2 and 4 Single Phase

Green 2 Main features:
Power up to 2.5 kW
From 24V up to 96V
From 17A up to 70A

Green 4 Main features:
Power up to 4.5 kW
From 24V up to 96V
From 17A up to 70A
Power up to 4.5 kW
Programmable from USB type A/B port or via display Graphical display.

Product Code Voltage Output Mains
(VAC)
Input
Current
8HR
Recharge
12 HR
Recharge
Dimensions Weight
24V50-01-SP 24V 50 230 7.5 280÷340 Ah 450÷550 Ah 300x475x180 11
24V60-01-SP 60 230 9 340÷410 Ah 540÷660 Ah 300x475x180 11
24V70-01-SP 70 230 10.5 390÷480 Ah 630÷770 Ah 300x475x180 11
24V80-01-SP 80 230 12 450÷550 Ah 720÷880 Ah 333x520x180 13
24V90-01-SP 90 230 13.5 510÷620 Ah 810÷990 Ah 333x520x180 13
24V100-01-SP 100 230 15 560÷690 Ah 900÷1100 Ah 333x520x180 13
24V120-01-SP 120 230 18 680÷830 Ah 1080÷1320 Ah 333x520x180 13
36V40-01-SP 36V 40 230 9 230÷280 Ah 360÷440 Ah 300x475x180 11
36V45-01-SP 45 230 10 250÷310 Ah 410÷500 Ah 300x475x180 11
36V50-01-SP 50 230 11 280÷340 Ah 450÷550 Ah 333x520x180 13
36V60-01-SP 60 230 13.5 340÷410 Ah 540÷660 Ah 333x520x180 13
36V70-01-SP 70 230 15.5 390÷480 Ah 630÷770 Ah 333x520x180 13
36V80-01-SP 80 230 18 450÷550 Ah 720÷880 Ah 333x520x180 13
36V90-01-SP 90 230 20 510÷620 Ah 810÷990 Ah 333x520x180 13
48V30-01-SP 48V 30 230 9 170÷210 Ah 270÷330 Ah 300x475x180 11
48V40-01-SP 40 230 12 230÷280 Ah 360÷440 Ah 300x475x180 11
48V50-01-SP 50 230 15 280÷340 Ah 450÷550 Ah 333x520x180 13
48V60-01-SP 60 230 18 340÷410 Ah 540÷660 Ah 333x520x180 13
48V75-01-SP 70 230 22.5 420÷520 Ah 680÷830 Ah 333x520x180 13
72V25-01-SP 72V 25 230 11 140÷170 Ah 230÷280 Ah 300x475x180 11
72V30-01-SP 30 230 13.5 170÷210 Ah 270÷330 Ah 300x475x180 13
72V40-01-SP 40 230 18 230÷280 Ah 360÷440 Ah 300x475x180 13
72V50-01-SP 50 230 22.5 280÷340 Ah 450÷550 Ah 300x475x180 13
80V20-01-SP 80V 20 230 10 110÷140 Ah 180÷220 Ah 300x475x180 11
80V30-01-SP 30 230 15 170÷210 Ah 270÷330 Ah 333x520x180 13
8040V-01-SP 40 230 20 230÷280 Ah 360÷440 Ah 333x520x180 13
