Selectiva Plus 8kW

The new three-phase Selectiva battery charging systems for 24V, 36V, 48V and 80V batteries feature a brand new charging process. The successful Active Inverter Technology with the revolutionary Ri-charging process adapts itself to the requirements of the battery and only charges the battery with the current that it actually needs. Conventional battery charging technologies work on the basis of a predefined, fixed charging characteristic and totally ignore the state of the battery.

New Ri Charging Process

  • The state of the battery is determined by its effective inner resistance
  • The charging characteristic is adapted according to the age, temperature and state of charge of the battery
  • The appropriate level of current is fed to the battery during each phase of the charging process
  • Every single charging cycle is hence unique and has its own characteristic

Adapting the current to the battery prevents charging losses when charging commences and during the recharging phase. The battery only receives the current that it actually needs.

The new Ri-charging process therefore guarantees the coolest and gentlest charge, extending the battery service life to its maximum.

Maximum Energy Efficiency

When charging a traction battery, the flow of energy from the socket via the charger to the battery is represented in the form of total efficiency.

  1. As a first step, the energy coming from the socket into the battery charger is converted from AC to DC. What is important here is the battery charging technology that the charger employs. This electrical process determines the device efficiency
  2. This is followed by an electrochemical process in which the battery is charged by means of a charging characteristic.
  3. This is referred to as charging efficiency
  4. Multiplying both processes together gives the total efficiency

Charging Characteristics

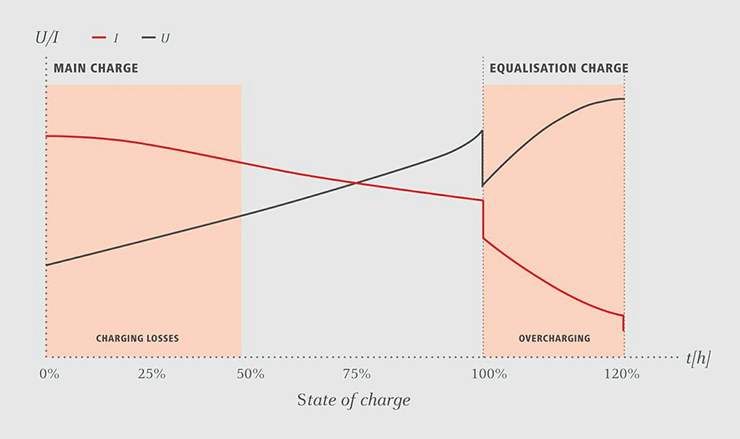

50H Charging Characteristics

50H Charging Characteristics

AIT Charging Characteristics

AIT Charging Characteristics

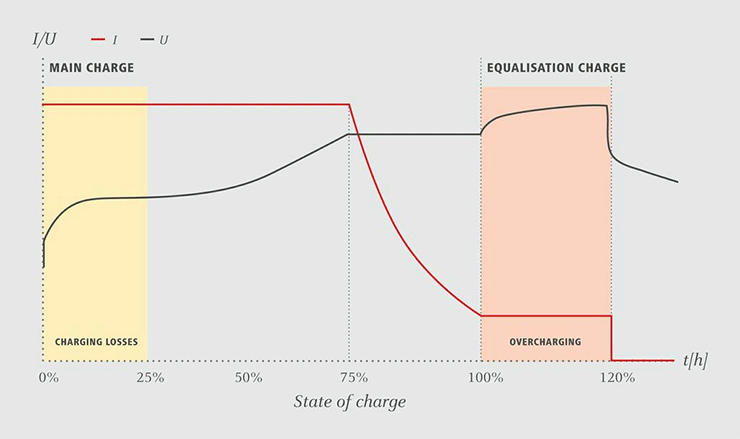

HF Charging Characteristics

HF Charging Characteristics

Ri Charging Characteristics

Ri Charging Characteristics

Ri Without Battery Warming Charging Characteristics

Ri Without Battery Warming Charging Characteristics

Selection Chart

HOUSING SELECTIVA 1kW SELECTIVA 2kW SELECTIVA PLUS 3kW SELECTIVA 8kW SELECTIVA 16kW
Housing type Housing 1 Housing 1 Housing 2 Housing 3 Housing 4
Power 1kW 2kW 3kW 8kW 16kW
Dimensions w/h/d 247 x 162 x 88 mm 341 x 110 x 200 mm 315 x 200 x 110 mm 633 x 344 x 180 mm 647 x 392 x 247 mm
Weight incl. mains and charging lead 4 kg 5 kg 8 kg 23 kg 34 kg
Protection class IP44 / IP40 IP21 IP21 IP20 IP20
Mains lead 2 m 2.5 m 2.5 m 3 m 3 m
Charging lead 2.5 m 3 m 3 m 3 m 3 m
Mains voltage 1 x 230v AC (+/- 10%) 1 x 230v AC (+/- 15%) 1 x 230v AC (+/- 10%) 3 x 400v AC (+/- 10%) 3 x 400V AC (+/- 10%)

Selection Table

Click to open the PDF
BATTERY VOLTAGE WET BATTERIES (PzS) VRLA BATTERY DEVICE TYPE COMPARATIVE TABLE FOR NOMINAL VOLTAGE POWERS UPPLY VOLTAGE CURRENT HOUSING
6h 7h 8h 9h 10h 11h 12h 13h 14h 10h 12h 14h
CAPACITY (Ah)
12V 110 135 165 195 225 250 120 140 160 Selectiva 1020 12V - 25A E230V/2A 1
160 190 240 300 345 375 180 200 220 Selectiva 1030 12V - 40A E230V/2A 1
24V 52 65 80 95 110 125 55 70 85 Selectiva 2010 24V - 15A E230V/2A 1
80 100 125 150 170 185 80 105 120 Selectiva 2015 24V - 20A E230V/2A 1
110 135 165 195 225 250 120 140 160 Selectiva 2020 24V - 25A E230V/2A 1
180 210 260 320 360 400 190 205 220 Selectiva 2032 24V - 40A E230V/4A 1
200 230 290 345 395 440 220 250 280 Selectiva 2040 24V - 45A E230V/7A 1
185 240 290 345 395 445 495 545 595 220 250 280 Selectiva Plus 2035 24V - 45A E230V/6A 2
280 365 440 520 595 675 750 825 900 280 330 420 Selectiva Plus 2050 24V - 60A E230V/7A 2
365 470 575 680 775 875 980 1070 1170 360 430 540 Selectiva Plus 2065 24V - 80A E230V/9A 2
450 580 710 830 950 1075 1200 1320 1440 440 530 670 Selectiva Plus 2080 24V - 100A E230V/11A 2
560 730 880 1040 1190 1350 1500 1650 1800 560 670 835 Selectiva Plus 2100 24V - 120A E230V/16A 2
560 730 880 1040 1190 1350 1500 1650 1800 560 670 835 Selectiva 2100 24V - 120A 400V/6A 3
670 870 1060 1250 1430 1600 1800 1980 2160 670 800 1000 Selectiva 2120 24V - 145A 400V/7A 3
800 1000 1240 1450 1680 1880 2100 2310 2520 780 930 1170 Selectiva 2140 24V - 170A 400V/8A 3
930 1150 1420 1650 1920 2140 2400 2640 2880 900 1170 1350 Selectiva 2160 24V - 190A 400V/9A 3
1010 1305 1595 1875 2150 2407 2700 2970 3240 Selectiva 2180 24V - 220A 400V/11A 3
1120 1450 1770 2080 2390 2675 3000 3300 3600 Selectiva 2200 24V - 240A 400V/12A 3
36V/48V 140 180 220 260 300 335 375 410 450 140 170 210 Selectiva Plus 4025 48V - 30A E230V/7A 2
185 240 290 345 395 445 495 545 595 220 250 280 Selectiva Plus 4035 48V - 45A E230V/10A 2
280 365 440 520 595 675 750 825 900 280 330 420 Selectiva Plus 4050 48V - 60A E230V/16A 2
340 440 530 620 720 800 900 990 1080 340 400 505 Selectiva 4060 48V - 70A 400V/8A 3
420 545 660 780 890 1015 1125 1240 1350 420 490 620 Selectiva 4075 48V - 90A 400V/9A 3
505 655 795 935 1075 1200 1350 1485 1620 505 600 750 Selectiva 4090 48V - 110A 400V/10A 3
670 870 1060 1250 1430 1600 1800 1980 2160 670 800 1000 Selectiva 4120 48V - 145A 400V/13A 3
800 1000 1240 1450 1680 1880 2100 2310 2520 780 930 1170 Selectiva 4140 48V - 170A 400V/15A 3
870 1085 1345 1575 1825 2040 2280 2508 2740 850 1010 1270 Selectiva 4160 48V - 190A 400V/15A 3
80V/72V 225 290 355 415 480 535 600 660 720 225 265 335 Selectiva 8040 80V - 50A 400V/8A 3
340 440 530 620 720 800 900 990 1080 340 400 505 Selectiva 8060 80V - 70A 400V/11A 3
420 545 660 780 890 1015 1125 1240 1350 420 490 620 Selectiva 8075 80V - 90A 400V/13A 3
495 635 770 910 1040 1170 1300 1430 1570 480 580 720 Selectiva 8090 80V - 110A 400V/15A 3
670 870 1060 1250 1430 1600 1800 1980 2160 67 490 620 Selectiva 8075 80V - 145A 400V/22A 3
800 1000 1240 1450 1680 1880 2100 2310 2520 780 930 1170 Selectiva 8040 80V - 170A 400V/25A 4
930 1150 1420 1650 1920 2140 2400 2640 2880 900 1170 1350 Selectiva 8090 80V - 190A 400V/28A 4
1000 1250 1550 1790 2090 2330 2610 2870 3130 970 1260 1460 Selectiva 8090 80V - 220A 400V/30A 4
